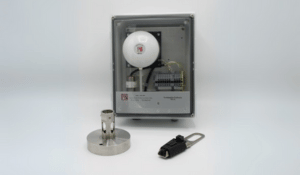

The SLS01 Sewage Lift Station Kit is a turn-key system for measuring water or wastewater depth, ideal for sewage applications such as lift station wet wells. Components of the Sewage Lift Station Kit are utilized together to ensure transmitters function to the best ability possible to measure depths. In this article, we go into detail on the SLS01 Sewage Lift Station Kit and its components.
6 Components of the SLS01 Sewage Lift Station Kit
1. VL2000 Submersible Level Transmitter
The VL2000 Submersible Wastewater Level Transmitter is a key part of the SLS Sewage Lift Station Kit. In water application, it's the component that senses level. It’s flush-mounted, ceramic diaphragm resists clogging in sewage and protects against damage. Moisture ingress is eliminated by a cable that is injection molded and the sensor is fully potted.
2. SW2100 Sink Weight
With the SW2100 Sink Weight, users can anchor the VL2000 transmitter in wet wells or tanks. With 4 pounds of weight, the Sink Weight enables a transmitter to stay in place in the most turbulent conditions.
3. TE-11 Dri-Box Termination Enclosure
The third component of the Sewage Lift Station is the TE-11 Dri-Box Termination Enclosure. The product terminates the cable from the VL2000 and allows access to the 4-10 mA loop. The TE-11 includes a DIN rail mounted terminal strip for easy connections.
4. MP-11 Moisture Protection Reference Volume
One of the components included with the TE-11 is the MP-11 Moisture Protection Reference Volume. The MP-11 connects directly to the vent tube of the VL2000 transmitter. It forms a closed loop that ensures the transmitter has a reliable reference to barometric pressure and eliminates the possibility of moisture ingress.
5. SP-10 Surge Protector
Next, we have the SP-10 Surge Protector. The SP10 mounts to the DIN rail inside the TE-11 and protects transmitters from voltage spikes and lightning.
.png?width=963&height=562&name=SP-10%20Surge%20Protector%20(Lightning%20Arrestor).png)
6. CH-10 Cable hanger
The CH10 Cable Hanger grips the cable to provide support for the transmitter, cable, and sink weight.
Conclusion
In conclusion, the SLS01 Sewage Lift Station Kit provides the essential components to ensure the VL2000 Submersible Wastewater Transmitter is easy to install in sewage and wastewater applications. With these components, measure pressure and depth with the advanced turn-key solution.
