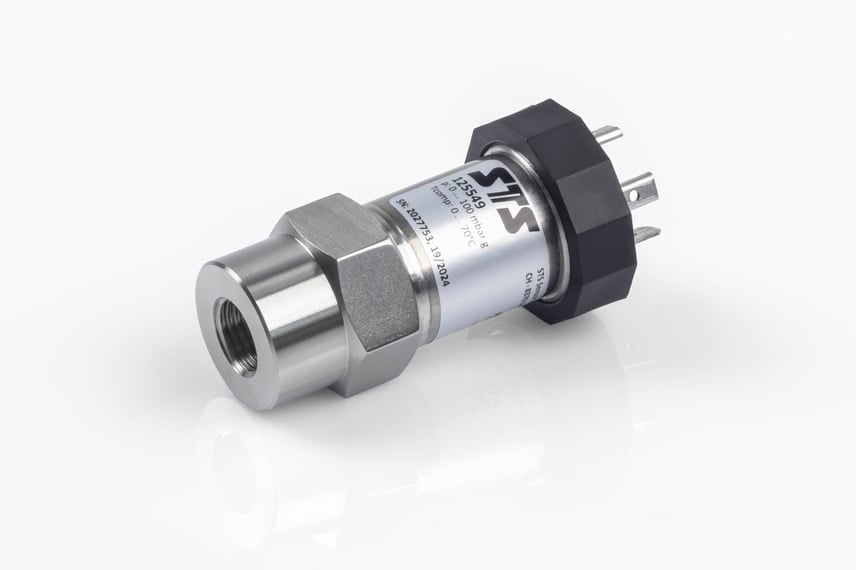

ATM.1ST – High Precision Pressure Transmitter
Customer Benefits
Any measuring ranges between 0 … 50 mbar and 0 … 1000 bar available
Static accuracies available to 0.05 %FS
Hysteresis and repeatability better than 0.01 %
Piezoresistive technology suitable for static and dynamic pressure measurements
Modular design ideal for customization to the application
Barometric or negative pressure ranges available
Features
Pressure measuring range
50 mbar … 1000 bar
Accuracy
≤ ± 0.10 / 0.05 % FS
Operating temperature
-40 … 125°C
Process temperature
-40 … 150°C
Output signal
0 … 5 / 0 … 10 VDC, 4 … 20 mA
Total Error Band
≤ ± 0.15 %FS (0 … 70°C)
Process connection
G 1/4 F, 1/4 NPT, 1/2 NPT, G 1/4 M, G1/2 M
Materials
Stainless steel, Titanium
