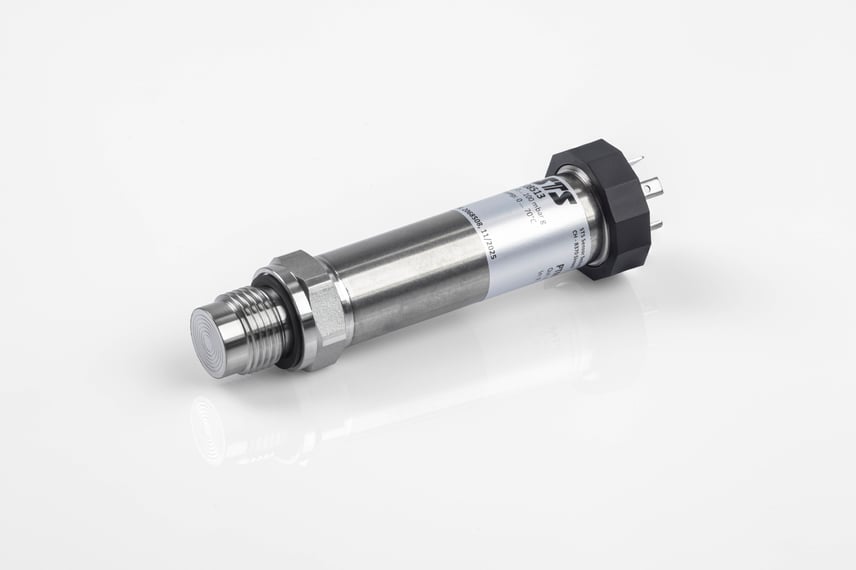

PTM - Programmable Pressure Transmitter
Customer Benefits
High flexibility due to scalalbe pressure range
Adjustment of zero and span setting through software commands
Fast customization thanks to modular product design
Stainless steel and titanium version for use in acidic or otherwise aggressive media
Features
Pressure measuring range
100 mbar…1000 bar
Adjustable
1:4 of the nominal range within -5% to +105%
Accuracy
≤ ± 0.25 / 0.10 % FS
Operating temperature
-25…85 °C
Process temperature
-40…150 °C
Output signal
4…20 mA
Materials
Stainless steel, Titanium
