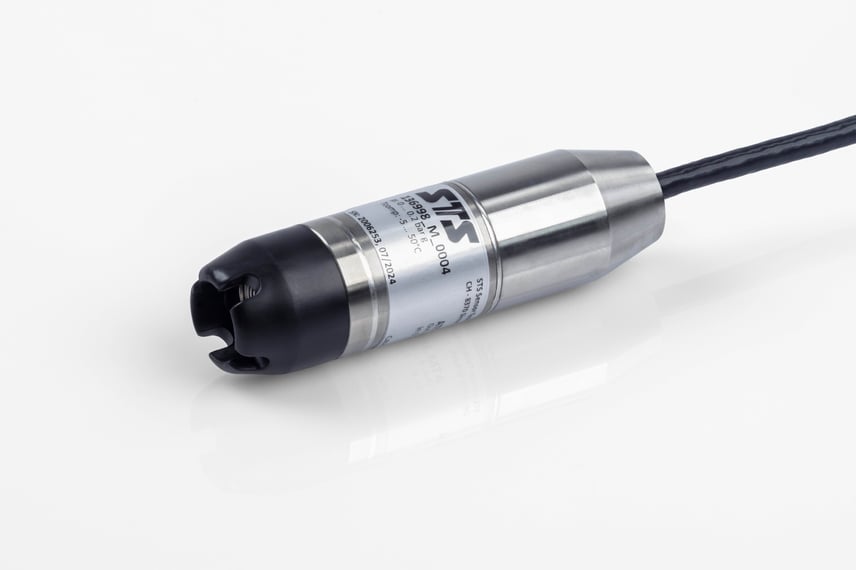

High Precision Submersible Level Transmitter

ATM.1ST/N

Customer Benefits

Fast customization thanks to configurable product design

Any measuring ranges between 0 ... 1 up to 0 ... 250 H2O available

Demountable electrical connector option to allow adjustment of zero and span setting in the field

Compact design requires minimal space

Short response time suitable for dynamic pressure measurements

Features

Pressure measuring range

0 ... 1 up to 0 ... 250 H2O

Accuracy

≤ ± 0.50 / 0.25 / 0.10 % FS

Operating temperature

-25 … 85°C

Process temperature

-40 … 150°C

Output signal

0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA

Process connection

G 1/4 F, 1/4 NPT, 1/2 NPT, G 1/4 M, G1/2 M

Materials

Stainless steel, Titanium
